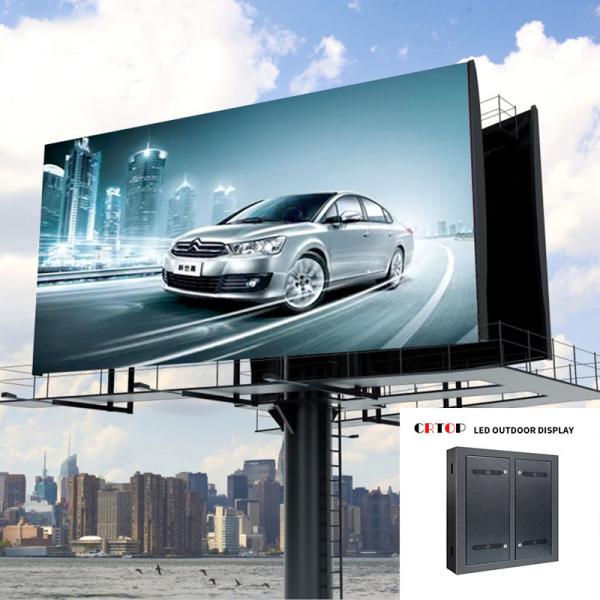

Waterproof Outdoor LED Advertising Screen Environmental Protection
P10 Energy conservation and environmental protection Outdoor Led Wall
1. The main light-emitting device of outdoor LED display is LED lamp bead, which is made of non-toxic material. Unlike fluorescent lamp, aquiferous silver will cause pollution, and LED can also be recycled.
2. Energy saving and environmental protection, all-weather work
3. The system has the advantages of stable and reliable operation, strong anti-interference ability and long screen life.
Pitch: P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark |
| BASIC PARAMETER | pixel pitch | 10mm | |
| pixel structure | 1R1G1B | |
| pixel density | 10000/m 2 | |
| Module resolution | 32(W)X16(H) | |
| Module size | 320mmX160mm | |
| Box size | 960mm*960mm | |
| OPTIC PARAMETER | Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 7200cd/㎡(static)/ ≥ 6000cd/㎡(2S) | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 120° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥20m | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥3000:1 | |
| Proccessing Performance | Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 1920 Hz _ | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
| Operation performance | Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | |
| Protection class | Front IP65, back IP43 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
| Electric parameter | Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 900W/ ㎡ (static)/ 1000W/ ㎡ (2S) | |
| Average power consumption | 400W/ ㎡ (static)/ 450W/ ㎡ (2S) | |
