P10 Full Color LED Display Waterproof Moistureproof Shock Proof

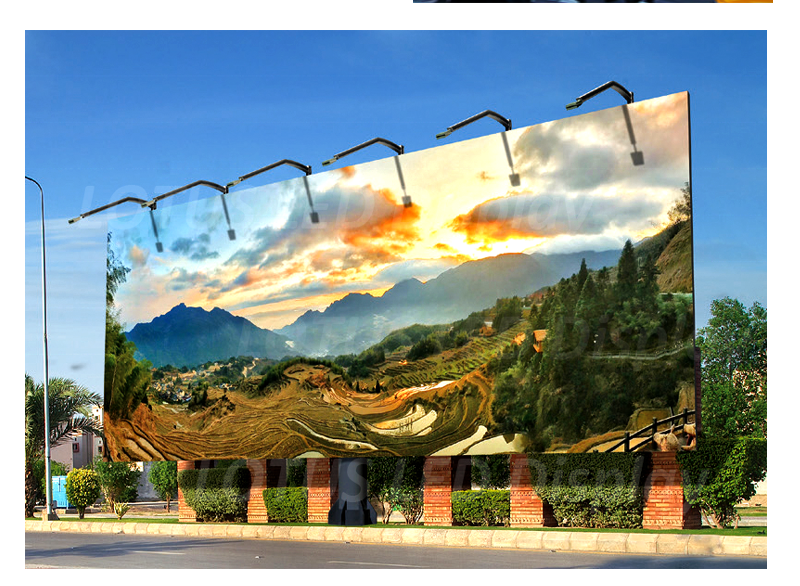

P10 waterproof, moistureproof, lightning and shock proof Outdoor Led Video Wall
1. All-weather work, can fully adapt to all kinds of harsh outdoor environment, with anti-corrosion, waterproof, moisture-proof, lightning, shock and other characteristics.
2. Seamless splicing, high refresh rate, outdoor LED display screen compared with LCD splicing, there will be no gap, the display effect is more beautiful
3.The system has the advantages of stable and reliable operation, strong anti-interference ability and long screen life.
Pitch:P2.5, P3, P3.07, P3.91, P4, P5, P5.33, P6.66, P8, P10
Module size:192x192mm,160x160mm,320x160mm,250x250mm,256x128mm
Cabinet size:640x640mm,768x768mm,960*960mm,500x500mm,1024x768mm 1024x768mm
| project | parameter | Remark |
BASIC PARAMETER | pixel pitch | 10mm | |
| pixel structure | 1R1G1B | |
| pixel density | 10000/m 2 | |
| Module resolution | 32(W)X16(H) | |
| Module size | 320mmX160mm | |
| Box size | 960mm*960mm | |
OPTIC PARAMETER | Single point luminance, chromaticity correction | have | |
| white balance brightness | ≥ 7200cd/㎡(static)/ ≥ 6000cd/㎡(2S) | |
| color temperature | 3200K—9300K adjustable | |
| Horizontal viewing angle | ≥ 120° | |
| vertical viewing angle | ≥ 120° | |
| Visible distance | ≥20m | |
| Brightness uniformity | ≥97% | |
| Contrast | ≥3000:1 | |
Proccessing Performance | Signal processing bits | 16 bits*3 | |
| grayscale | 16Bit | |
| control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| drive mode | High gray-scale constant current source driver IC | |
| frame rate | ≥ 60HZ | |
| refresh rate | ≥ 3840 Hz _ | |
| way to control | Synchronize | |
| Brightness adjustment range | 0 to 100 stepless adjustment | |
Operation performance | Continuous working time | ≥72 hours | |
| Typical life | 50,000 hours | |
| Protection class | Front IP65, back IP43 | |
| range of working temperature | -20℃ to 50℃ | |
| Operating humidity range | 10 %- 80% RH non-condensing | |
| Storage temperature range | -20 ℃ to 60 ℃ | |
Electric parameter | Operating Voltage | DC 5V | |
| Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| Maximum power consumption | 900W/ ㎡ (static)/ 1000W/ ㎡ (2S) | |
| Average power consumption | 400W/ ㎡ (static)/ 450W/ ㎡ (2S) | |
