576×576mm Rental Series P6

Product Categories
SHENZHEN CRTOP CO.,LTD.
Contact Now

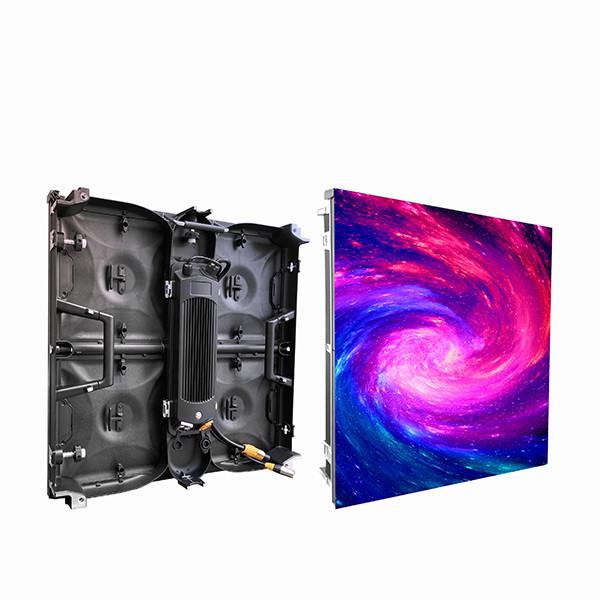

576×576mm Rental Series P6

Brand Name : CRTOP

Model Number : P6mm

Certification : CE/FCC/ETL

Place of Origin : CHINA

pitch : P6mm

material : die cast aluminum cabinet

application : outdoor rental

brightness : 4500cd

contrast ratio : 5000:1

view angle : 140º

install : fast easy to install and uninstall

waterproof : IP65

characteristic : single pixel correction

color temperature : 2000K—12500K adjustable

Contact Now

P3.91mm Outdoor LED Display Rental Waterproof IP65 Wide View Angle



576×576mm Rental Series

project parameter Remark



BASIC PARAMETER

 pixel pitch 6 mm
  pixel structure 1R1G1B
  pixel density 27778/ m2
  Module resolution 48 (W)* 48 (H)
  Module size 288mm*288mm
  Box size 576mmX576mm





OPTIC PARAMETER

 Single point luminance, chromaticity correction have
  white balance brightness ≥4 5 00cd/㎡
  color temperature 2000K—12500K adjustable
  Horizontal viewing angle ≥ 140°
  vertical viewing angle ≥ 120°
  Visible distance ≥8 meters
  Brightness uniformity ≥97%
  Contrast ≥5000:1





Proccessing performace

 Signal processing bits 16 bits*3
  grayscale 12-14Bit
  control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
  drive mode High gray-scale constant current source driver IC
  frame rate ≥ 60HZ
  refresh rate 1920-3840 Hz
  way to control Synchronize
  Brightness adjustment range 0 to 100 stepless adjustment



Operation parameter

 Continuous working time ≥72 hours
  Typical life 50,000 hours
  Protection class IP 65
  range of working temperature -20℃ to 50℃
  Operating humidity range 10 %- 80% RH non-condensing
  Storage temperature range -20 ℃ to 60 ℃



Electric parameter

 Operating Voltage DC 5V
  Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
  Maximum power consumption 80 0W/ ㎡
  Average power consumption 3 6 0W/ ㎡

Rental led display,led wall parameter:

1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability





2.Both the hoisting lock and the left and right locks can be quickly connected and disassembled; there is no tool for one-person rear maintenance ; the power box is independently disassembled and maintained after Arcs, corners and various creative shapes can be realized



576×576mm Rental Series P6
