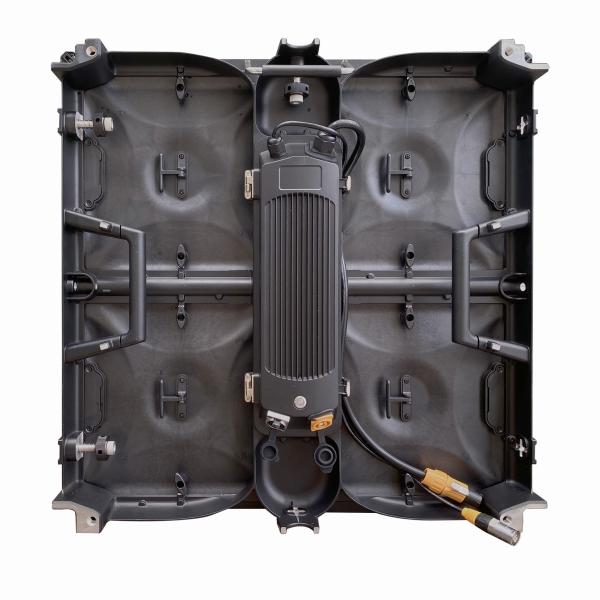

576×576mm Rental Series P3.8

Name: 576576mm Rental Series P38
Brand: CRTOP
Price: 1 USD

Buy cheap 576×576mm Rental Series P3.8 product

Brand Name : CRTOP

Model Number : P3.8mm

Certification : CE/FCC/ETL

Place of Origin : CHINA

pitch : P3.8mm

material : die cast aluminum cabinet

application : outdoor rental

brightness : 4500cd

contrast ratio : 5000:1

view angle : 140º

install : fast easy to install and uninstall

waterproof : IP65

refresh : 1920-3840Hz

characteristic : great sense of space and visual tension

Contact Now

3840Hz Outdoor Outdoor Rental LED Screen Die Cast Aluminum Cabinet

High refresh aluminum die cast P3.91mm outdoor rental led display screen led vedio wall

Rental led display,led wall parameter:

1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability

2. giving people the product characteristics of firmness, stability and strong operability

3. The bump design of the mask enhances the crash resistance of the surface of the module;

PITICH:

indoor P2.8 P3.8 P4.8

Outdoor P3.8 P4.8 P6

Module size:288x288mm

Box size: 576*576mm

project		parameter
BASIC PARAMETER	pixel pitch	3.8 mm
	pixel structure	1R1G1B
	pixel density	67817 / ^m2
	Module resolution	75 (W)* 75(H)
	Module size	288mm*288mm
	Box size	576mmX576mm
OPTIC PARAMETER	Single point luminance, chromaticity correction	have
	white balance brightness	≥4500cd/㎡
	color temperature	2000K—12500K adjustable
	Horizontal viewing angle	≥ 140°
	vertical viewing angle	≥ 120°
	Visible distance	≥8 meters
	Brightness uniformity	≥97%
	Contrast	≥5000:1
Proccessing performace	Signal processing bits	16 bits*3
	grayscale	12-14Bit
	control distance	Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
	drive mode	High gray-scale constant current source driver IC
	frame rate	≥ 60HZ
	refresh rate	1920 -3840Hz
	way to control	Synchronize
	Brightness adjustment range	0 to 100 stepless adjustment
Operation parameter	Continuous working time	≥72 hours
	Typical life	50,000 hours
	Protection class	IP 65
	range of working temperature	-20℃ to 50℃
	Operating humidity range	10 %- 80% RH non-condensing
	Storage temperature range	-20 ℃ to 60 ℃
Electric parameter	Operating Voltage	DC 5V
	Power Requirements	AC: 220×(1±10%)V, 50×(1±5%)Hz
	Maximum power consumption	80 0W/ ㎡
	Average power consumption	3 6 0W/ ㎡

576×576mm Rental Series P3.8

Product Tags:

IP65 3840Hz Outdoor Rental LED Screen

P3.91mm IP65 Rental Led Display Screen

4500cd Mobile Led Screen Hire

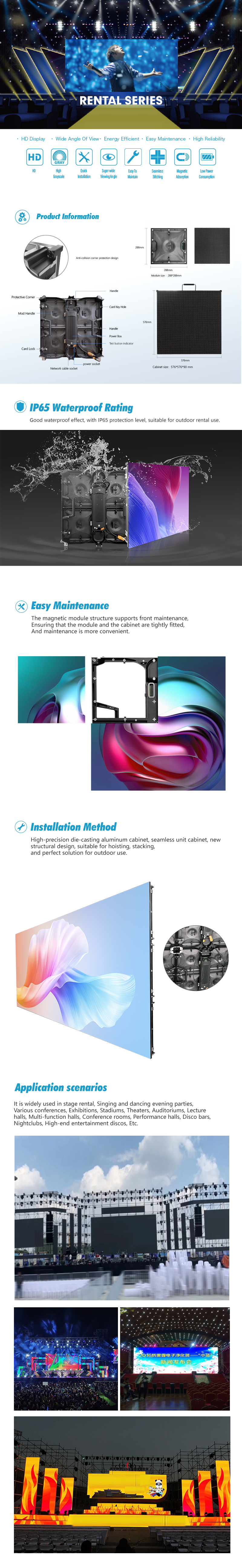

576×576mm Rental Series P3.8 Images
