Adjustable Color Temperature Rent LED Video Wall Immersive Design
Rental led display,led wall parameter:

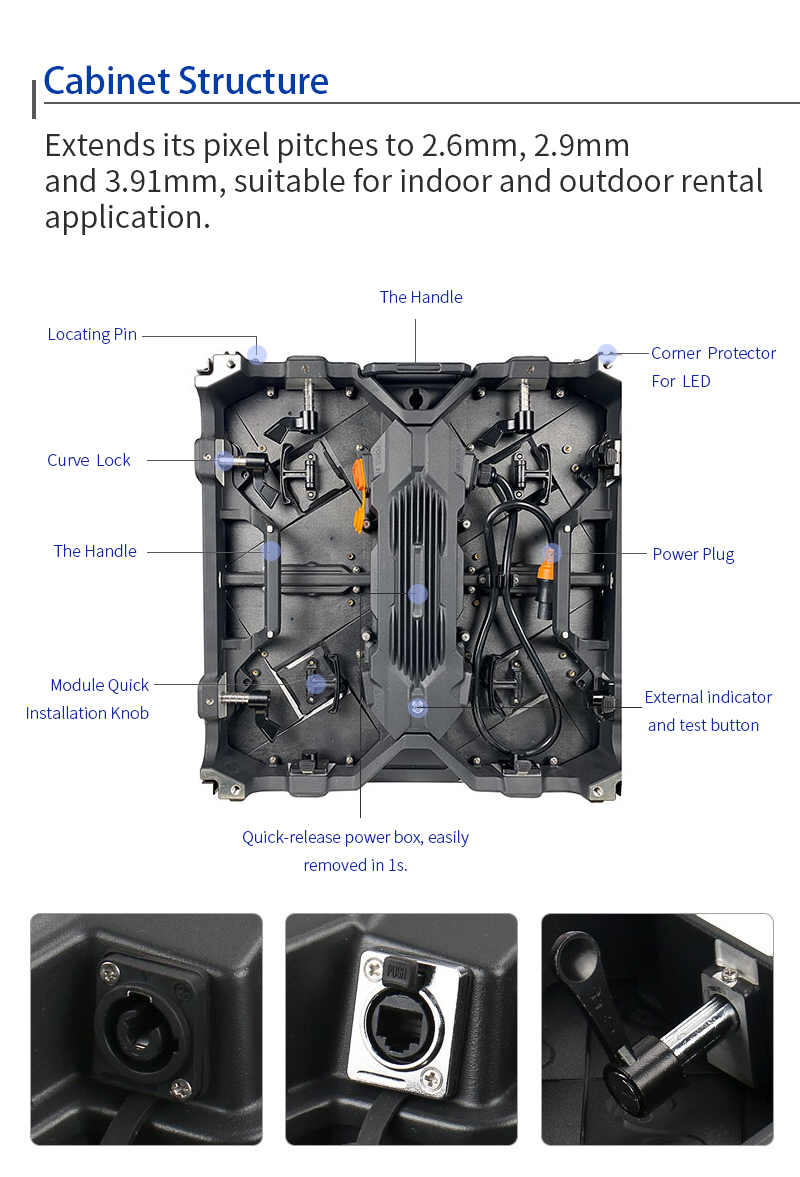

- The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
- Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design

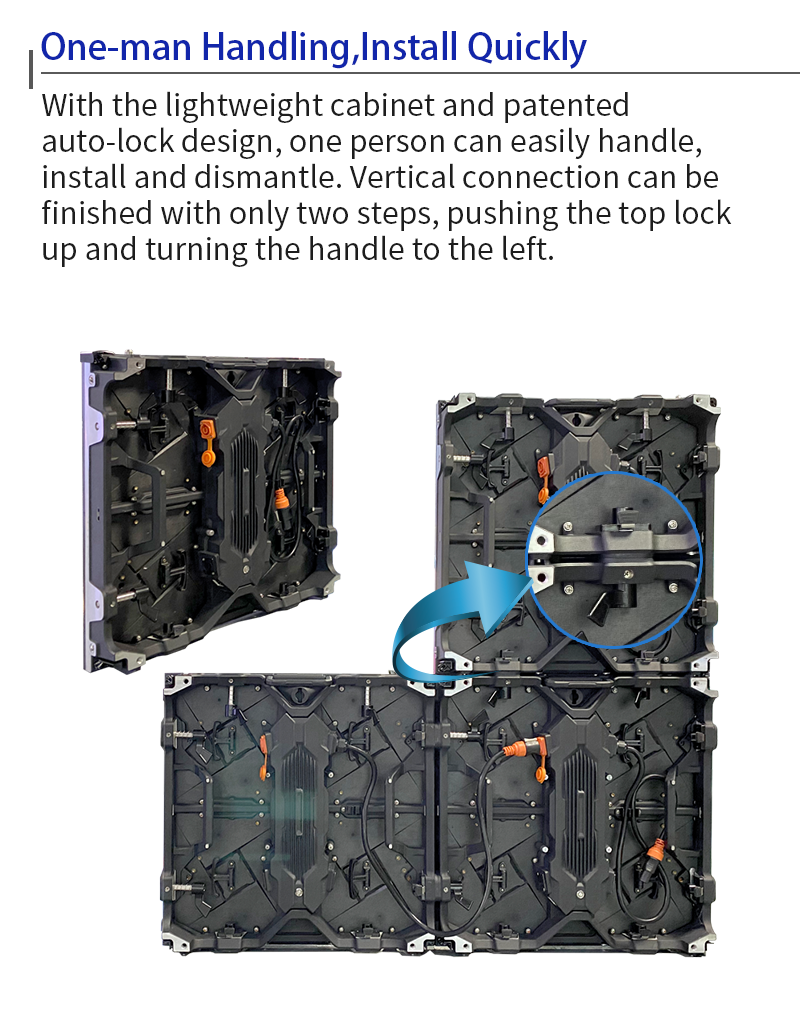

- Both the hoisting lock and the left and right locks can be quickly connected and disassembled;
| Project | parameter | Remark |
| BASIC PARAMETER | pixel pitch | 3.91 mm | |
| | pixel structure | 1R1G1B | |
| | pixel density | 65544 /m 2 | |
| | Module resolution | 64 (W)* 64 (H) | |
| | Module size | 250mm*250mm | |

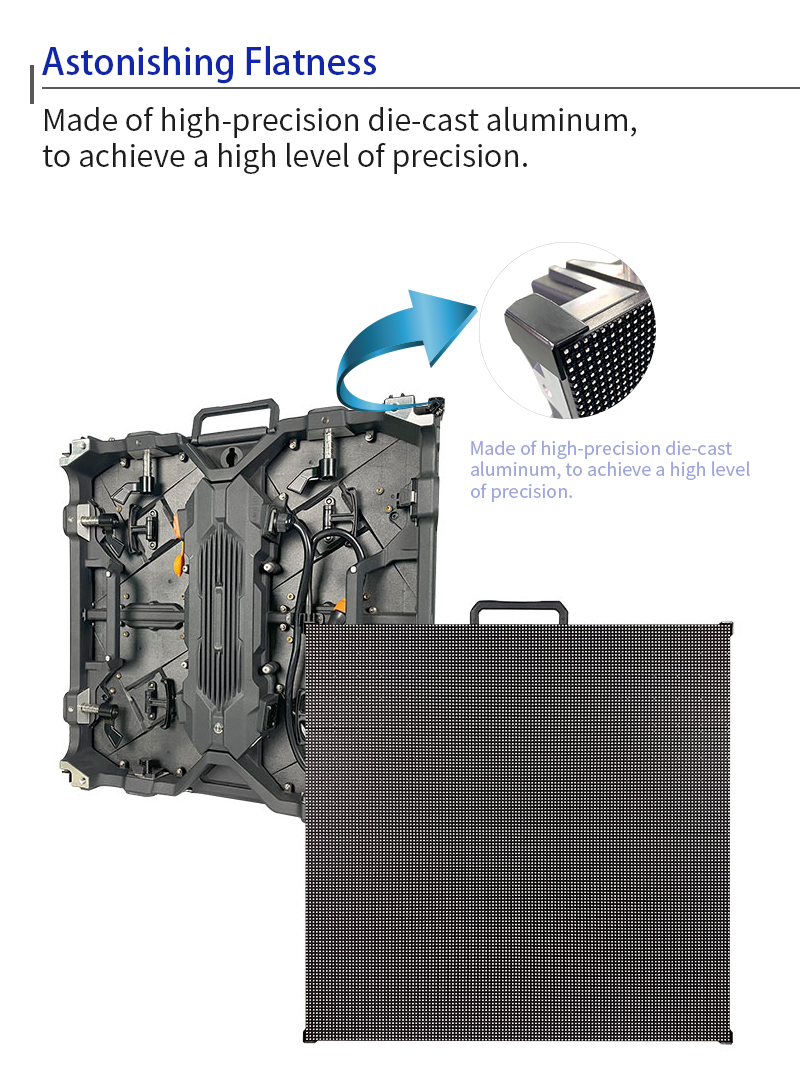

| | cabinet size | 500mm*500mm | die casting |
| OPTIC PARAMETER | Single point luminance, chromaticity correction | have | |
| | white balance brightness | ≥ 600cd/㎡ | |
| | color temperature | 2000K—12500K adjustable | |
| | Horizontal viewing angle | ≥ 160° | |
| | vertical viewing angle | ≥ 140° | |
| | Visible distance | ≥9m | |
| | Brightness uniformity | ≥97% | |
| | Contrast | ≥3000:1 | |
| Proccessing performace | Signal processing bits | 16 bits*3 | |
| | grayscale | 12-14Bit | |
| | control distance | Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers | |
| | drive mode | High gray-scale constant current source driver IC | |
| | frame rate | ≥ 60HZ | |
| | refresh rate | ≥1920-3840 Hz | |
| | way to control | Synchronize | |
| | Brightness adjustment range | 0 to 100 stepless adjustment | |
| Operation parameter | Continuous working time | ≥72 hours | |
| | Typical life | 50,000 hours | |
| | Protection class | IP20 | |
| | range of working temperature | -20℃ to 50℃ | |
| | Operating humidity range | 10 %- 80% RH non-condensing | |
| | Storage temperature range | -20 ℃ to 60 ℃ | |
| Electric parameter | Operating Voltage | DC 5V | |
| | Power Requirements | AC: 220×(1±10%)V, 50×(1±5%)Hz | |
| | Maximum power consumption | 700W/ ㎡ | |
| | Average power consumption | 260W/ ㎡ | |
PITICH:
indoor P2.604, P2.97, P3.91
Outdoor P2.97, P3.91, P4.81
Module size:250x250mm
Box size: 500*500mm
Application Of Indoor Rental LED Screen
Mobile Truck LED Display is being an important advertising media for outdoor events and advertising campaign on basis of its unique advanced structure feature. It’s known as truck mounted LED display and trailer mounted LED screen. The products are widely used for advertising, shows, square, concert, sporting event, festival, corporate gathering or charitable event, Grand Theater, large song and dance party, fashion show.
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
Bank, insurance companies, post offices, hospital, schools
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
Movie theaters, clubs, stages
